WTS Data Table
Licensed advanced capabilities

Every shipped feature.
Demonstrated.

Explore all 10 licensed capability groups. Each section identifies runtime controls, shows the product-facing result, and provides the package API used to build it.

10 / 10licensed capability groups documented below
1 / 10 · Worker processing

Worker-powered processing

Keep 100,000 or 1,000,000 rows in a dedicated module worker while the table receives bounded pages and the interface stays responsive.

Runtime options
blockSizemaxBlocksmaxCacheBytesmaxWindowRows
TypeScript · framework-neutral API
import { createWorkerProcessingClient } from 'wts-data-table/worker-client';
import { createBrowserWorkerTransport } from 'wts-data-table/worker-browser';
import { createWorkerTableController } from 'wts-data-table/worker-table';

const license = await verifyDataTableLicense(entitlementToken);
const client = createWorkerProcessingClient({
  license,
  createTransport: () => createBrowserWorkerTransport(
    new URL('./worker.js', import.meta.url), { license }
  )
});
await client.loadSnapshot(snapshot);
const bridge = createWorkerTableController({
  license, client, blockSize: 100, maxBlocks: 3,
  ...tableAdapter
});
await bridge.refresh();

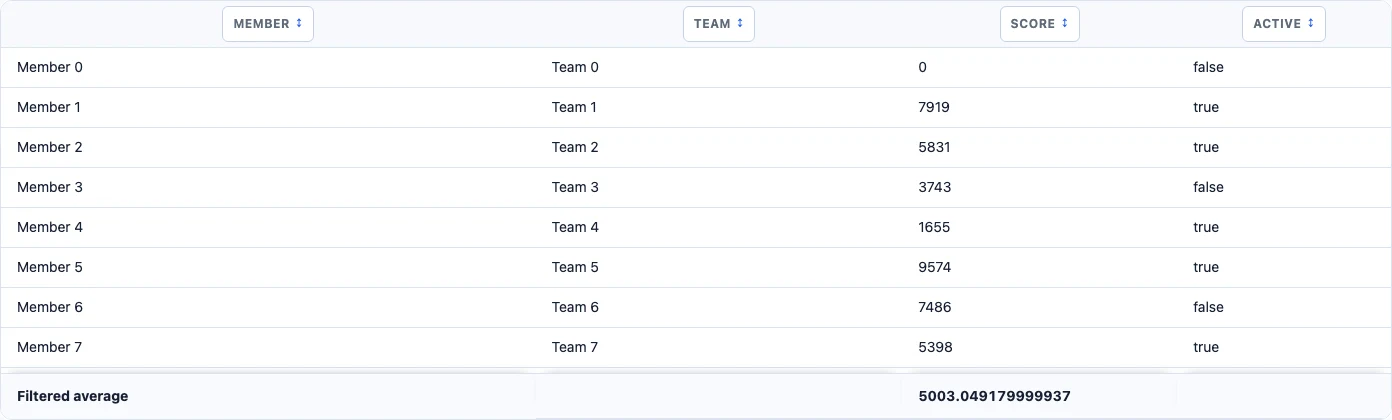

Large WTS Data Table dataset processed through a dedicated worker
Worker processing · bounded table pages
2 / 10 · Advanced row model

Remote data viewport

Request only visible blocks from an application-owned source while retaining a bounded row window, selection state, and native table interaction.

Runtime options
blockSizemaxBlocksrowHeightmaxWindowRows
TypeScript · framework-neutral API
import { createRemoteViewportController } from 'wts-data-table/remote-viewport';
import { createRemoteRowModel } from 'wts-data-table/remote';

const model = createRemoteRowModel({
  license, source, blockSize: 50, maxBlocks: 3
});
const remote = createRemoteViewportController({
  license, model, rowHeight: 60, maxWindowRows: 1000,
  getState: () => table.getState(),
  subscribe: listener => table.core.subscribe(listener),
  setRowWindow: (window, options) => table.setRowWindow(window, options),
  getViewportRange: () => table.getViewportRange(),
  scrollToRow: index => table.scrollToRow(index)
});
await remote.refresh();

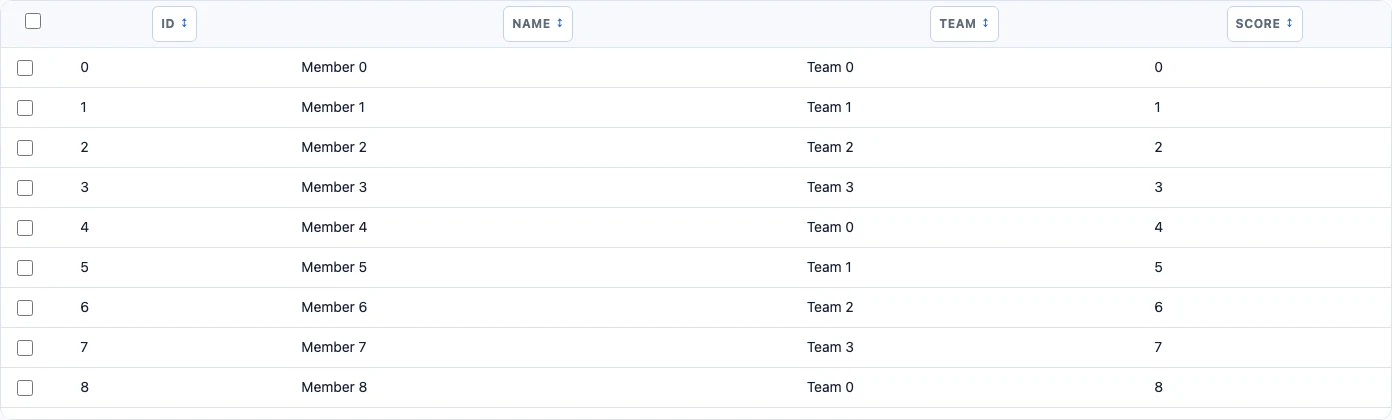

Bounded WTS Data Table viewport backed by a remote dataset
Remote viewport · application-owned source
3 / 10 · Spreadsheet formulas

Formula workbook and editor

Keep canonical formulas stable while the table is sorted, filtered, or reordered, with an explicit formula bar and atomic commits.

Runtime options
maxCellsmaxDependenciesmaxChangesmaxFormulaBytes
TypeScript · framework-neutral API
import { createFormulaWorkbook } from 'wts-data-table/formula-engine';
import { createFormulaTableBridge } from 'wts-data-table/formula-table';
import { createFormulaEditor } from 'wts-data-table/formula-editor';

const workbook = createFormulaWorkbook({
  license, rowIds, columnIds
});
const bridge = createFormulaTableBridge({
  license, workbook, table
});
const editor = createFormulaEditor({
  license, container: formulaHost, bridge
});

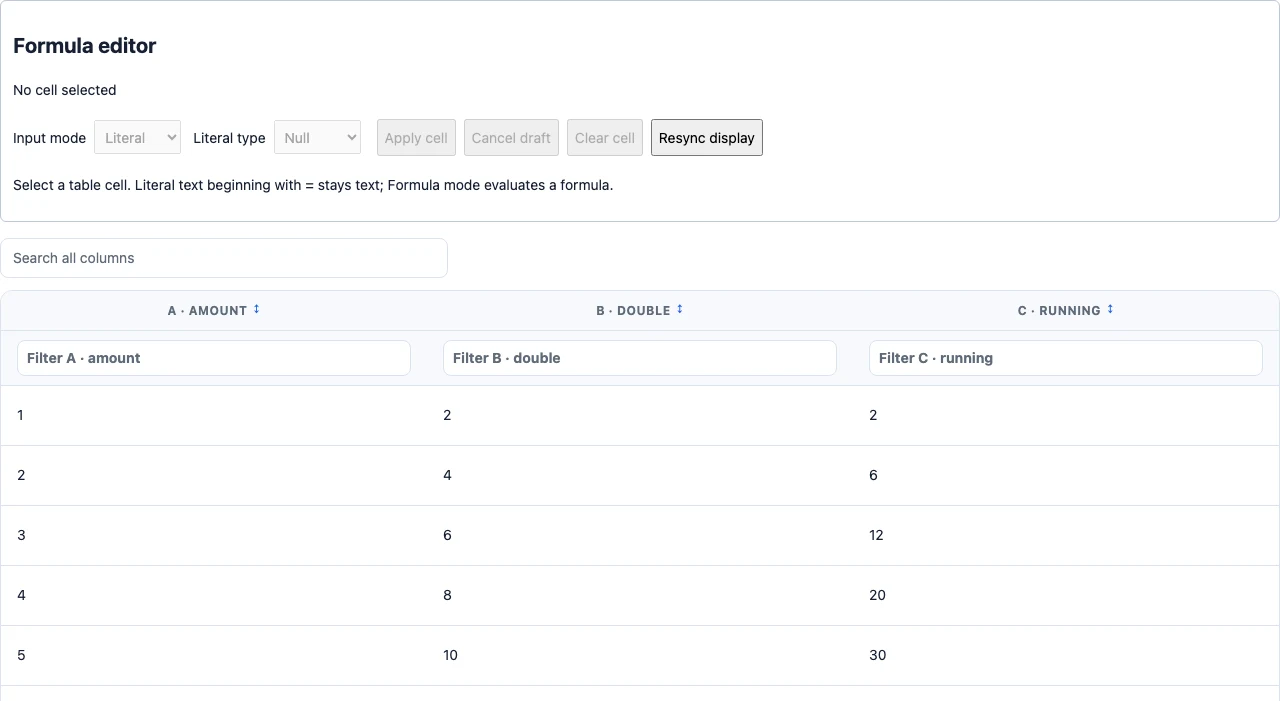

Formula editor connected to calculated WTS Data Table cells
Formula workbook · atomic editor commits
5 / 10 · Background export

Durable export jobs

Stream authorized CSV exports through bounded workers, persist progress, recover interrupted jobs, and expose owner-scoped downloads.

Runtime options
concurrencymaxPendingpageSizemaxRows
TypeScript · framework-neutral API
import { createExportJobManager } from 'wts-data-table/export-jobs';

const exports = createExportJobManager({
  license,
  columns: [{ header: 'ID', value: row => row.id },
    { header: 'Name', value: row => row.name }],
  limits: { concurrency: 2, maxPending: 16, pageSize: 500 },
  loadPage: (query, cursor, limit, signal, job) =>
    database.readAuthorizedPage({ owner: job.owner, query, cursor, limit, signal }),
  createSink: job => storage.createCsvSink(job)
});
const job = exports.submit(authenticatedOwner, authorizedQuery);
const completed = await exports.wait(authenticatedOwner, job.id);

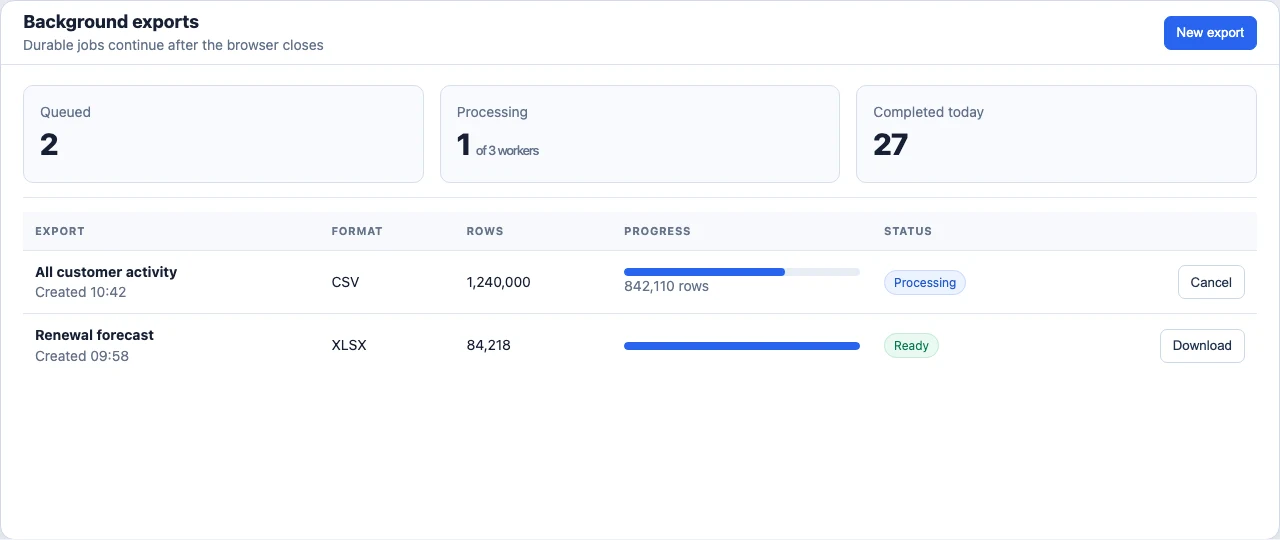

Background export job queue showing progress and completed downloads
Application job UI · durable export runtime
6 / 10 · Live data

Resumable live ingestion

Apply ordered real-time changes through bounded batches, detect sequence gaps, recover by replay or snapshot, and keep table updates atomic.

Runtime options
flushIntervalMsmaxReconnectsmaxBufferedBytesmaxBatchBytes
TypeScript · framework-neutral API
import { createLiveDataController } from 'wts-data-table/live-data';

const live = createLiveDataController({
  license, scopeId: authorizedScope,
  loadSnapshot: ({ scopeId, signal }) =>
    fetchAuthorizedSnapshot(scopeId, signal),
  createTransport: liveTransport, sink: atomicTableSink,
  limits: { flushIntervalMs: 50, maxReconnects: 5 }
});
await live.start();
await live.flush();

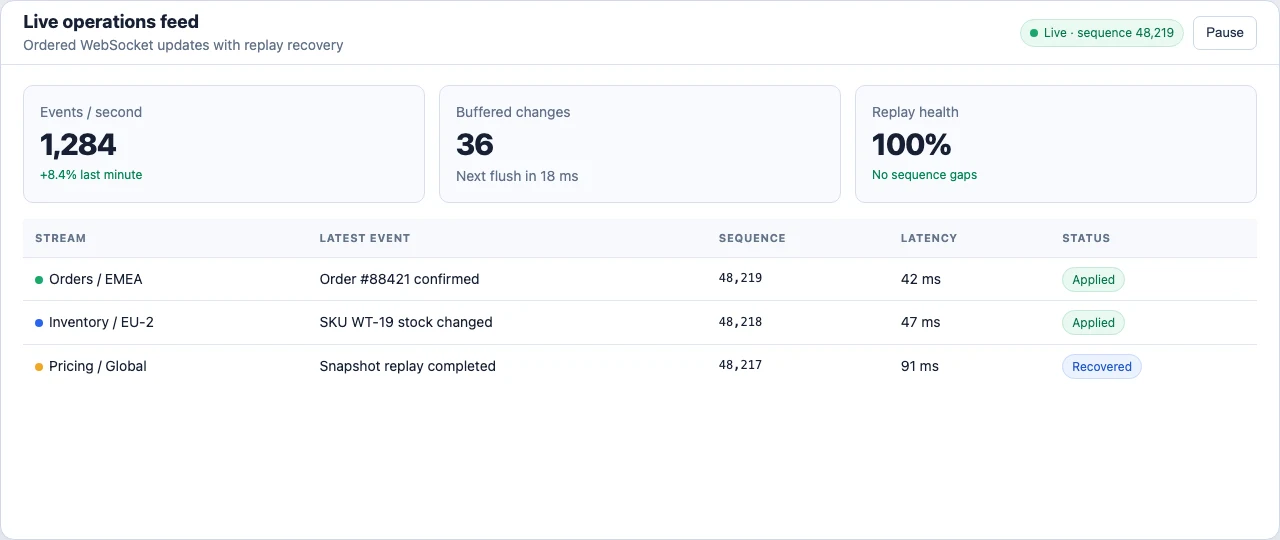

Live operations feed showing ordered sequence processing and replay health
Application stream UI · live controller
7 / 10 · Server analytics

Server-side pivot builder

Configure bounded sparse pivots, calculate authoritative totals on the server, and drill into permitted source rows without loading the full dataset.

Runtime options
maxGridCellsmaxDimensionsmaxMeasuresmaxDrillRows
TypeScript · framework-neutral API
import { createPivotController } from 'wts-data-table/pivot-controller';
import { createPivotBuilder } from 'wts-data-table/pivot-builder';

const controller = createPivotController({
  license, catalog, source,
  initialRequest: { rowDimensions: ['region'], columnDimensions: ['quarter'],
    values: [{ id: 'revenue', columnId: 'revenue', operation: 'sum' }] },
  limits: { maxGridCells: 8192, maxDrillRows: 100 }
});
const builder = createPivotBuilder({
  license, container: pivotHost, catalog, controller
});
await controller.refresh();

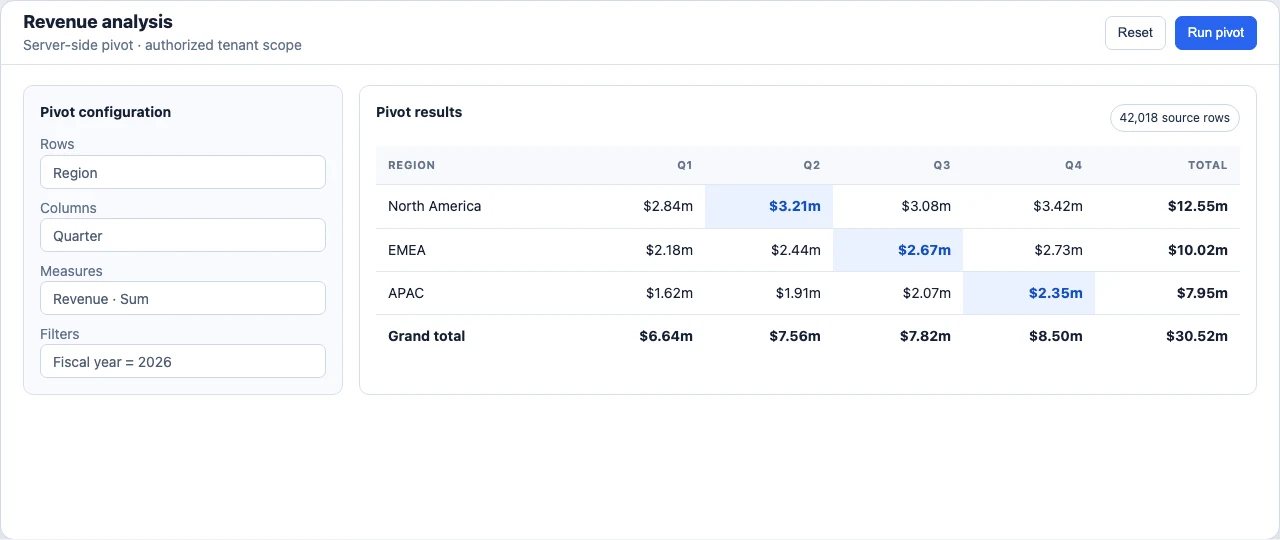

Server-side revenue pivot builder with dimensions measures and totals
Native pivot builder · authorized data source
8 / 10 · Collaborative editing

Authoritative multi-user editing

Synchronize canonical cell revisions, keep drafts separate from committed state, surface advisory presence, and reconcile conflicts explicitly.

Runtime options
rowIdscolumnIdsmaxRowsmaxCells
TypeScript · framework-neutral API
import { DataTable } from 'wts-data-table';
import { createCollaborationClient } from 'wts-data-table/collaboration-client';
import { createCollaborationTableBridge, projectCollaborationRows }
  from 'wts-data-table/collaboration-table';

const client = createCollaborationClient({ license, authority, source });
await client.start();
const projection = projectCollaborationRows({ license, client });
const table = new DataTable({ element: tableHost, data: projection.rows,
  columns: projection.columns, getRowId: row => row.id,
  cellSelection: true, editing: true });
const collaboration = createCollaborationTableBridge({ license, client, table });

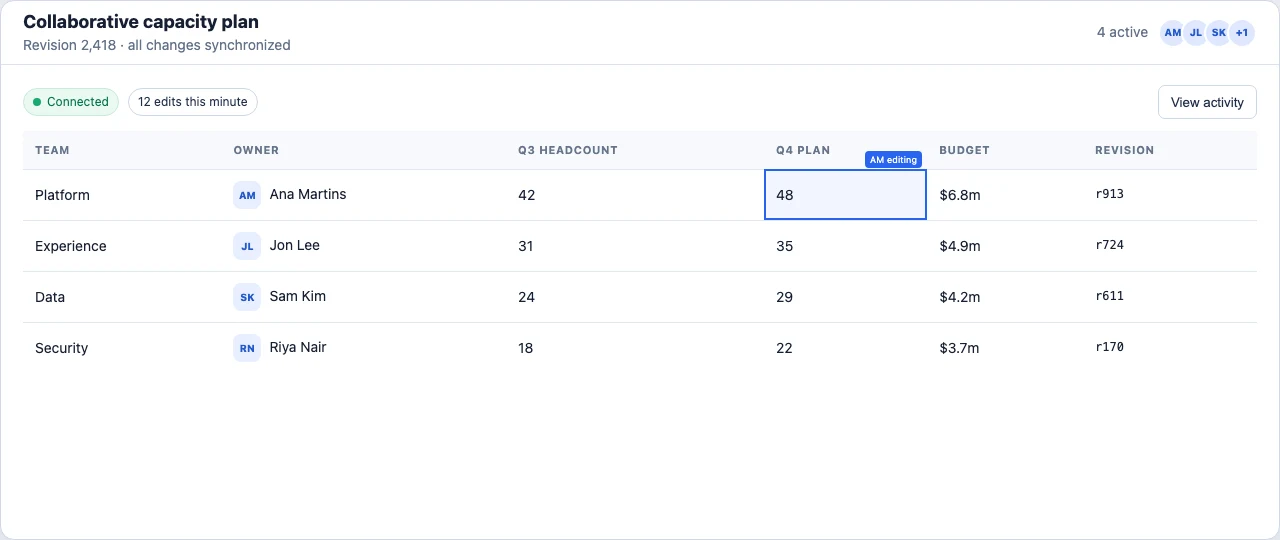

Collaborative capacity table showing active editors and a selected cell
Native table projection · collaboration client
9 / 10 · Governed editing

Policy-backed review workflow

Submit immutable cell-change proposals, apply independent approval rules, retain an audit trail, and execute approved work with fencing tokens.

Runtime options
listStatuslistPageSizeauditPageSizemaxRenderedProposals
TypeScript · framework-neutral API
import { createGovernanceClient } from 'wts-data-table/governance-client';
import { createGovernancePanel } from 'wts-data-table/governance-panel';

const client = createGovernanceClient({
  license, authority: localDocumentScope, source: governanceSource,
  listStatus: 'pending', listPageSize: 50, auditPageSize: 100
});
await client.start();
const panel = createGovernancePanel({
  license, container: governanceHost, client
});

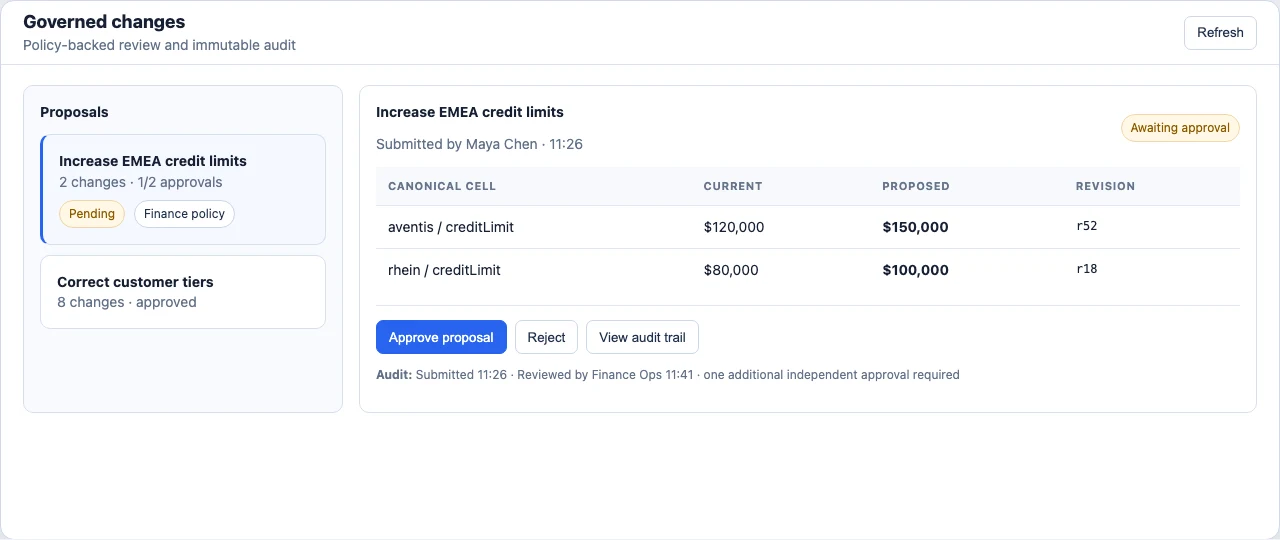

Governed editing panel showing a pending proposal and approval actions
Native governance panel · authoritative client
10 / 10 · Report designer

Server-driven report designer

Build versioned metric, chart, and table layouts over bounded authoritative results with linked filters and explicit persistence.

Runtime options
maxConcurrentmaxCacheEntriesmaxRenderedWidgetsmaxTablePageHistory
TypeScript · framework-neutral API
import { createReportController } from 'wts-data-table/report-controller';
import { createReportDesigner } from 'wts-data-table/report-designer';

const controller = createReportController({
  license, catalog, spec, source,
  limits: { maxConcurrent: 4, maxCacheEntries: 64 }
});
const designer = createReportDesigner({
  license, container: reportHost, catalog, controller,
  authoring: { persistSpec: saveVersionedReport }
});
await controller.refresh();

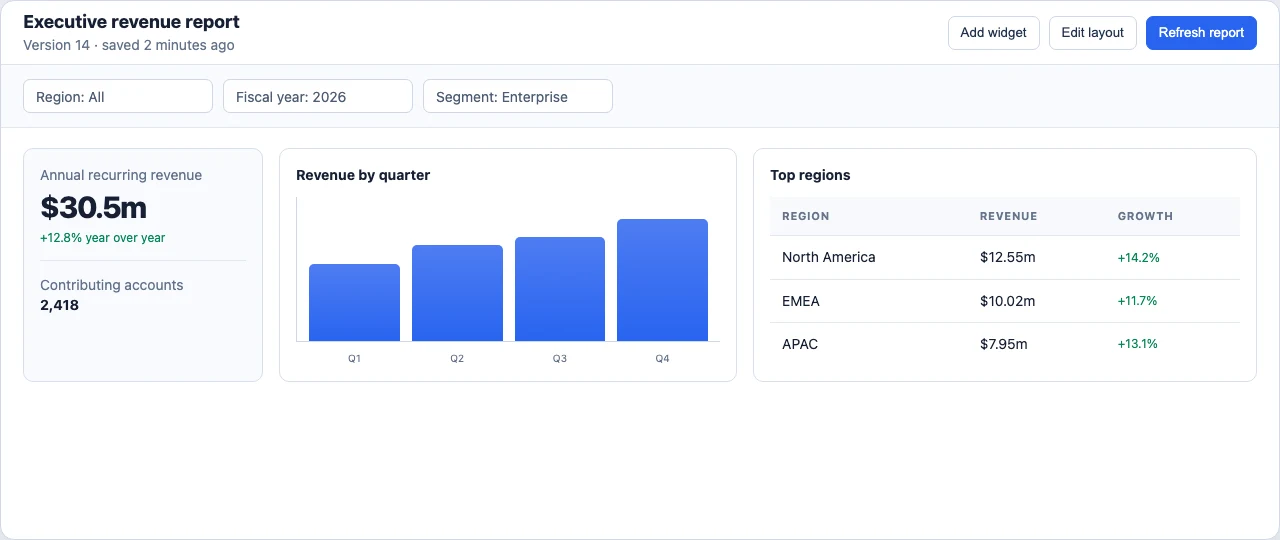

Executive report designer showing metrics chart filters and a data table
Native report designer · server-driven widgets
One package, explicit entitlement

All 10 capabilities are included in wts-data-table 1.0.2 and later under feature-named imports. Advanced factories require a verified signed entitlement. The controllers are framework-neutral, so Angular, React, Vue, and JavaScript applications use the same feature APIs and connect them to their own component lifecycle.

Email for a license key → Review licensing →
